Embraer Legacy 650

2010 – 2017

Key Facts

  • The Embraer Legacy 650 is a large-cabin business jet with a fleet size of 110 aircraft since its introduction in 2010.
  • It features two Rolls-Royce AE 3007A2 engines, each producing 9,020 lbf of thrust, and can accommodate up to 13 passengers.
  • The Legacy 650 has a range of 3,900 nautical miles, a maximum cruising speed of 456 knots, and a service ceiling of 41,000 feet.
  • It is equipped with the Honeywell Primus Elite avionics suite, offering advanced navigation and safety features.
  • The Legacy 650 is known for its impressive performance, comfort, and technological advancements.

Introduction to the Embraer Legacy 650

The Embraer Legacy 650 is a large business jet made by the Brazilian aerospace manufacturer Embraer. It was made from 2010 to 2017.

This jet is an upgrade of the Legacy 600, offering better range and features. It’s great for long flights across continents. With 84% of the jets being new, it’s a favorite among those who love private flying.

It can fly up to 3,900 nautical miles. The Legacy 650 reaches speeds of 456 knots and flies up to 41,000 feet. It’s a high-performance jet, perfect for today’s business travelers

Key Statistics Embraer Legacy 650
Pre-owned Acquisitions 16%
Average Time on Market 294 days
Aircraft in Operation Worldwide 93
Cabin Volume 1,656 cubic feet
Passenger and Crew Capacity 14 passengers, 2 crew
Maximum Cruise Speed 459 knots (850 km/h)
Long-range Speed 425 knots (787 km/h)
Takeoff Distance 5,741 feet (1,750 m)
Landing Distance 2,346 feet (715 m)
Maximum Ramp Weight 53,727 lbs (24,371 kg)
Maximum Takeoff Weight 53,572 lbs (24,300 kg)
Maximum Landing Weight 44,092 lbs (20,000 kg)
Noise Levels 78 EPNdB (takeoff), 86.9 EPNdB (flyover), 91.7 EPNdB (approach)
Engines 2 Rolls-Royce AE3007A2 (9,020 lbs thrust each, 362 gal/hr fuel consumption)





Design and Comfort Features

The Embraer Legacy 650 has a spacious cabin with a luxurious design.

It’s 49 ft 10 in long, 6 ft 11 in wide, and 6 ft tall. It can seat up to 14 people in three zones, perfect for work, rest, and fun.

The cabin’s interior features a rare Mahogany Crotch Snowflake Design. This unique pattern adds elegance and exclusivity. The seats are made of durable leather with Stahl Stay Clean™ technology for lasting comfort and easy upkeep.

The lavatories have walnut-veneered surfaces and a high-gloss finish. This creates a sophisticated look. The team at AeroVisto worked closely with the client to bring their vision to life, ensuring a smooth refurbishment.

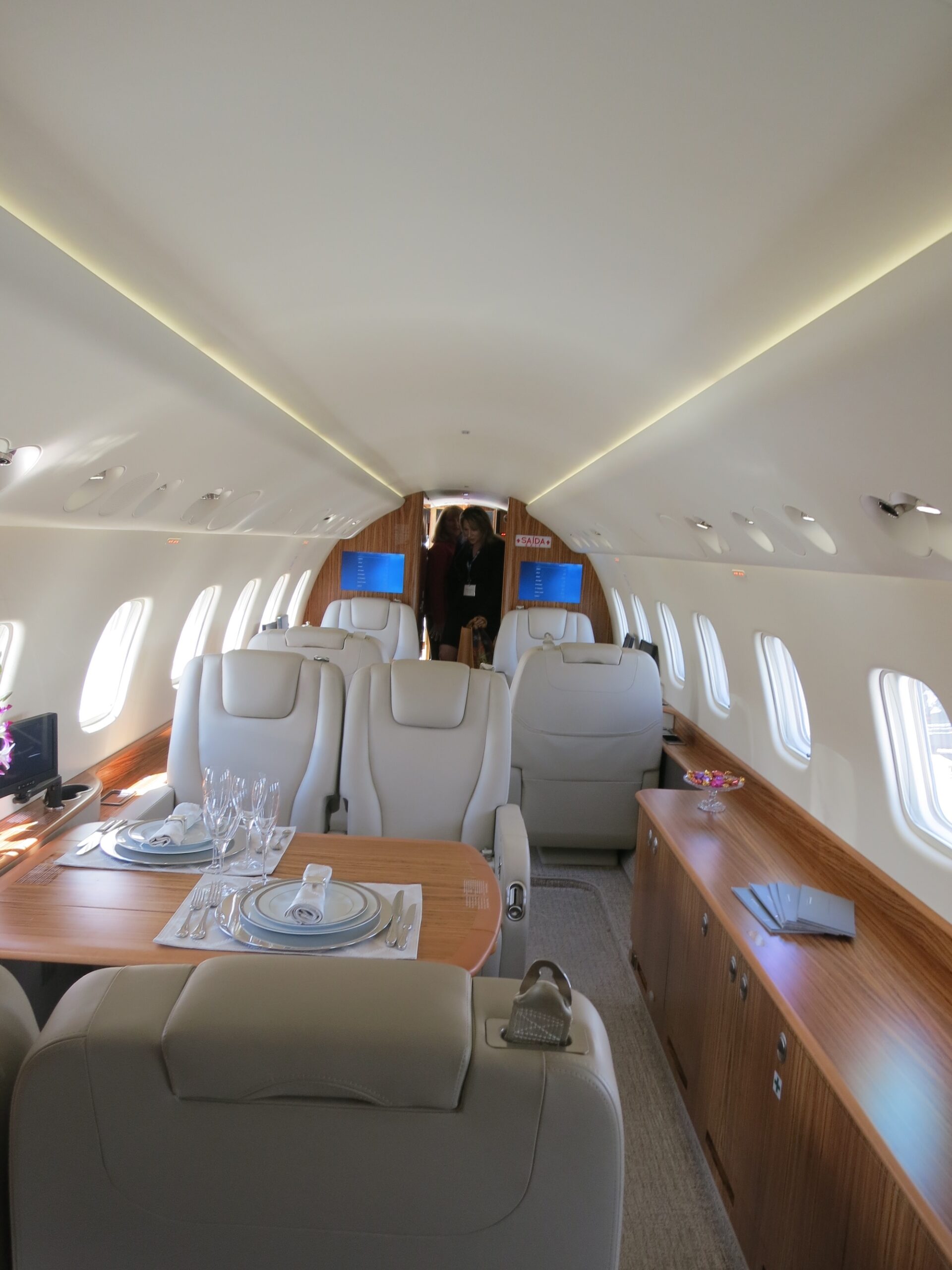

Embraer Legacy 650 interior of forward cabin

JetRequest.com, CC BY-SA 3.0, via Wikimedia Commons





Performance Specifications

The Embraer Legacy 650 can fly at speeds of up to 459 knots. This makes it great for fast, long-distance travel.

It needs only 5,741 feet to take off and 2,842 feet to land. This shows it can use many airports. It also has a range of 3,661 nautical miles, making it easy to reach destinations.

Performance Metric Specification
Maximum Cruise Speed 459 knots
Normal Cruise Speed 447 knots
Long-Range Cruise Speed 425 knots
Takeoff Distance 5,741 feet
Landing Distance 2,842 feet
Full Range 3,661 nautical miles
Maximum Range 3,900 nautical miles

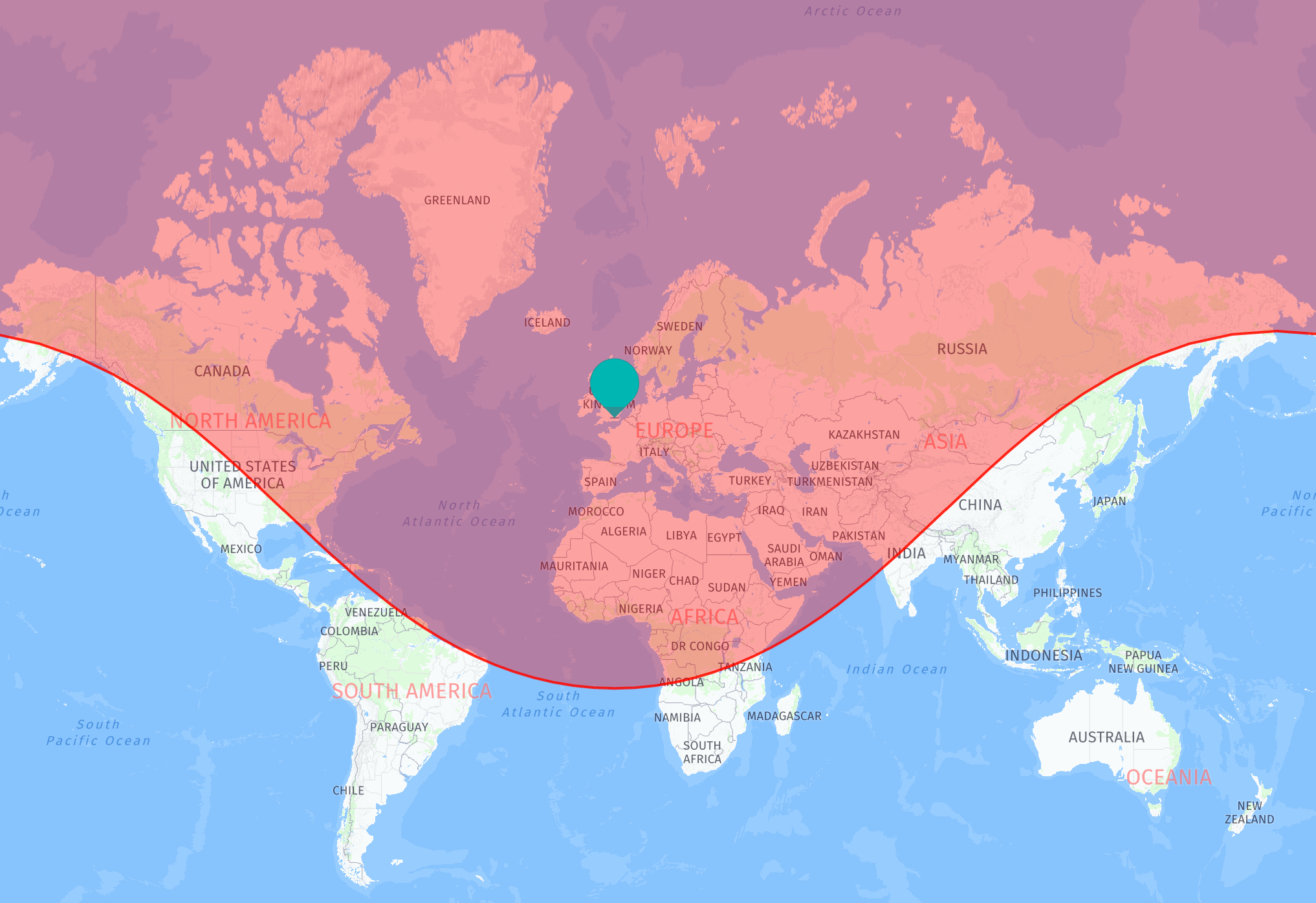

Embraer Legacy 650 Range Map





Technological Advancements

The Embraer Legacy 650 has advanced tech that makes flying better for pilots and passengers. The Legacy 650’s avionics system is powered by the Honeywell Primus Elite. This system offers top-notch features.

The Synthetic Vision System (SVS) gives pilots a 3D view of the terrain. This boosts their awareness and safety. It also includes Jeppesen Charts for detailed aeronautical info.

The Legacy 650’s tech also lets pilots see real-time weather with XM weather integration. This helps them make safe flight decisions. The aircraft has lots of info on airports, airways, and more. This helps pilots navigate confidently.

These tech upgrades make the Legacy 650 safer and more efficient. They also make flying more enjoyable for its passengers. This makes the Legacy 650 a standout choice for those who fly in style.

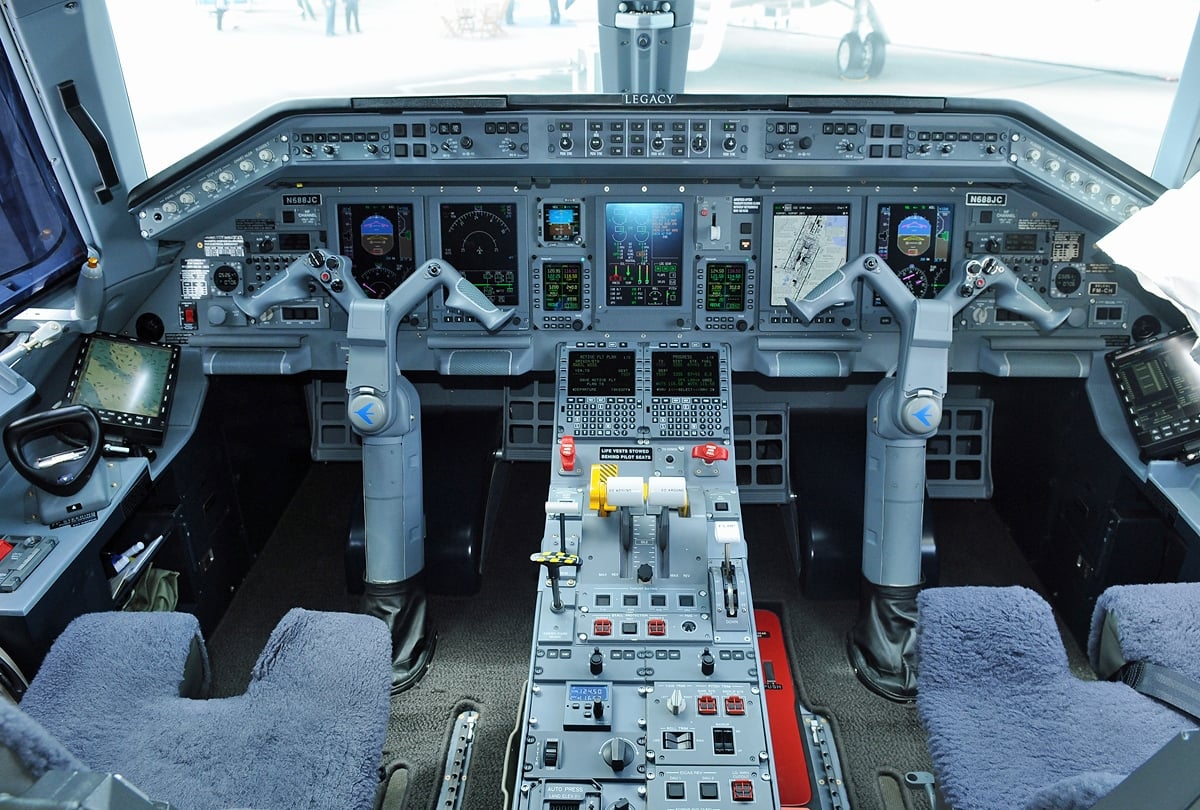

Embraer ERJ-135BJ Legacy 650 cockpit with avionics powered on

Aldo Bidini (GFDL 1.2 or GFDL 1.2), via Wikimedia Commons





Safety and Compliance

The Embraer Legacy 650 is a masterpiece of engineering, known for its safety and adherence to regulations in business aviation and private aviation. It meets all safety standards and industry certifications for its class.

The Legacy 650’s safety is rooted in its advanced avionics and strong airframe. Its cockpit is equipped with the latest navigation and communication systems. This gives pilots the tools they need to fly safely and efficiently. The aircraft’s ability to take off and land on various runways adds to its safety and versatility.

Safety Compliance Details
Maintenance Training The maintenance training course for the Embraer Legacy 600/650 covers 60 hours over 10 days, ensuring technicians are thoroughly prepared to support the aircraft’s maintenance and inspection schedules.
Regulatory Standards The training course covers ATA chapters ranging from Introduction (1) to Power Plant (71-80), meeting industry standards such as ATA 104 Specification Level I and EASA requirements.
Exam Requirements Students must attend at least 95% of the course content and achieve a mark of 75% or above on any written exams to successfully complete the training.
Training Environment The training environment provided by CAE is flexible, offering classroom, off-site, and distance learning options to accommodate the needs of maintenance technicians.





Operating Costs

The Embraer Legacy 650 has relatively low operating costs given its size.

The fixed costs are about $867,638, covering crew, hangar, insurance, and more.

The variable costs are around $5,794 per hour. This includes fuel, maintenance, and other expenses.

Cost Metric Embraer Legacy 650 Gulfstream G450 Bombardier Global 5000
Acquisition Cost $20.2 – $20.3 million $44.5 – $45.5 million $54.5 – $56.5 million
Annual Fixed Cost $948,000 – $950,000 $1,050,000 – $1,080,000 $1,150,000 – $1,180,000
Variable Cost per Hour $5,794 $6,200 – $6,500 $6,700 – $7,000
Payload Capacity 5,000 lbs 6,000 lbs 7,200 lbs
Range 3,900+ nm 4,200+ nm 5,900+ nm
Cabin Volume 1,792 cubic feet 1,525 cubic feet 2,002 cubic feet

The total annual cost of the Embraer Legacy 650 is about $2,605,838 when flying 300 hours per year. It’s a competitive choice in the executive jet market. With 110 aircraft and only 9% for sale, it’s a favorite among those seeking luxury.

Discover private jet ownership costs, acquisition costs, and in-depth technical data for over 140 private jets by signing up today.





Acquisition Costs

Prices for the Embraer Legacy 650 ranges from $14,500,000 to $20,500,000, based on the year and condition.

The value drops by about 12% each year, which is around $2,100,000 for a $17,500,000 aircraft.

This aircraft has impressive specs. It can fly 3,900 nautical miles with four passengers or 3,840 with eight. It has 1,650 ft³ of cabin space. It can go up to 528 mph and cruise at 514 mph.

Compared to others like the Challenger 605 and Gulfstream G450, the Legacy 650 is more affordable. The Legacy 600 costs $29.9 million, and the Legacy 650E is $25,900,000.

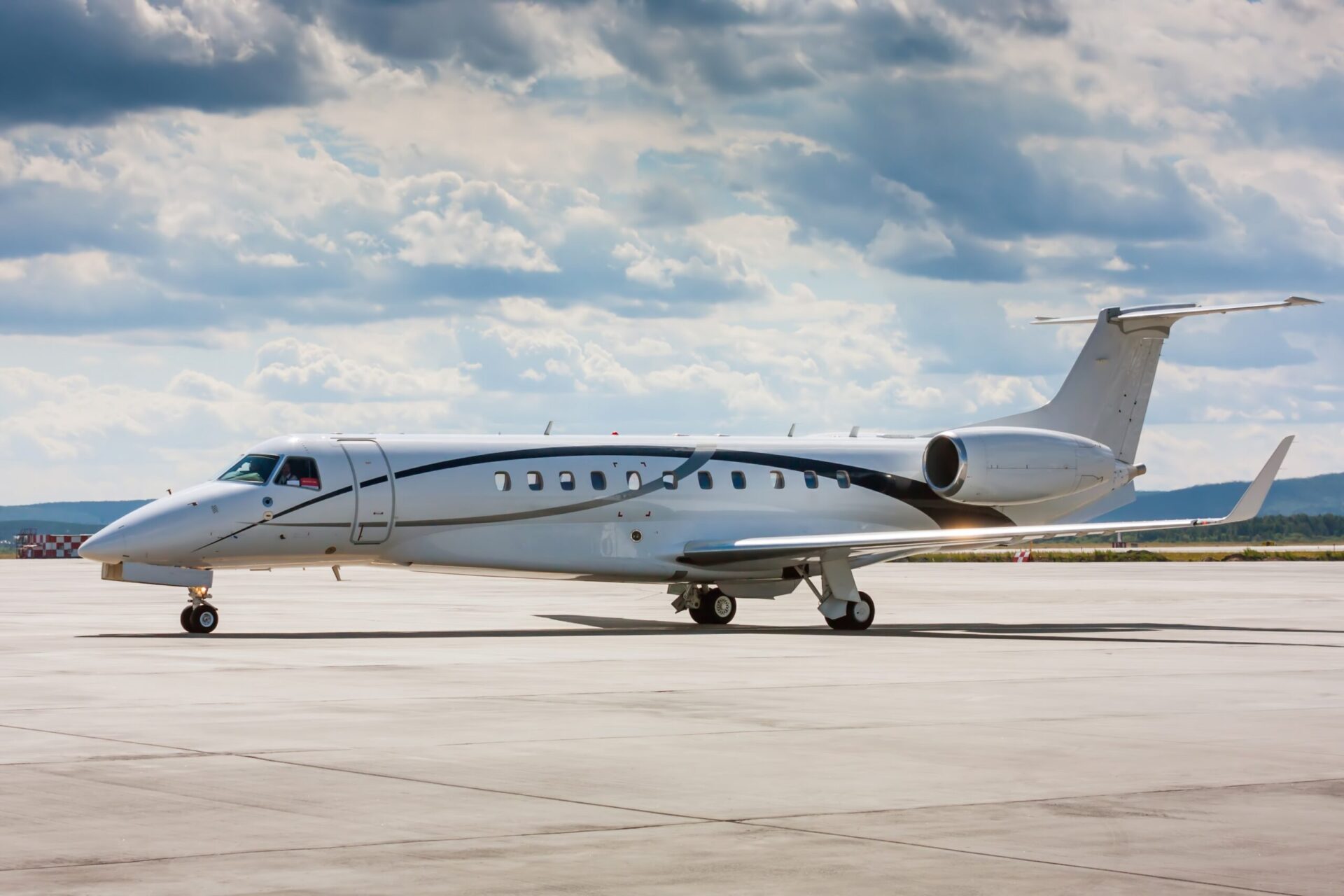

Embraer Legacy 650 parked on ramp at airport

Dushlik / Shutterstock.com





Comparison with Competitors

The Embraer Legacy 650 executive jet is a top choice in the large cabin business aviation market. It offers similar performance and space as the Bombardier Challenger 850. With a range of 3,881 nautical miles and a top speed of 436 knots, it shines in its class.

It’s a strong contender for those who want long-range travel and luxury. The Legacy 650 is a standout in its class, thanks to its balance of range and comfort.

When compared to its rivals, the Legacy 650 holds its own. For example, the Gulfstream G650 has a longer range and faster speed. But it can carry fewer passengers than the Legacy 650.

The Dassault Falcon 7X also offers a good range and speed. It seats up to 12 passengers, making it a strong competitor in the market.

Aircraft Range (nm) Top Speed (knots) Passenger Capacity
Embraer Legacy 650 3,881 436 13
Gulfstream G650 6,950 502 18
Dassault Falcon 7X 5,723 476 12
Bombardier Challenger 605 4,020 447 10





Conclusion

The Embraer Legacy 650 can fly non-stop between big cities like New York and London. It also has a spacious cabin for up to 13 passengers and flies at 528 knots.

Even though it’s no longer made, the Legacy 650 is still popular in the used market. It has advanced tech, long range, and a comfy cabin. This makes it a top choice for those wanting a luxury private jet.

The Embraer Legacy 650 is still in demand today because of its range, comfort, and speed. It’s a great option for anyone looking for a high-end business jet.





FAQ

What are the key specifications of the Embraer Legacy 650?

The Embraer Legacy 650 is a large business jet. It has two Rolls Royce AE3007A2 engines. It can fly up to 45,000 feet high and travel 3,900 nautical miles.

It can carry up to 14 passengers and has a crew of 2. The maximum takeoff weight is 53,572 lbs.



When was the Legacy 650 introduced?

The Embraer Legacy 650 was introduced in 2010. It was a new version of the Embraer 135BJ. It was made for 10 years, from 2010 to 2020.



What are the dimensions of the Legacy 650 cabin?

The Legacy 650 has a big cabin. It is 49 ft 10 in long, 6 ft 11 in wide, and 6 ft high. It can seat up to 14 people in three zones.



What are the performance capabilities of the Legacy 650?

The Legacy 650 can fly at speeds of up to 459 knots. It needs 5,741 feet to take off and 2,842 feet to land. It can travel 3,661 nautical miles.

Its maximum range is 3,900 nautical miles. It has a normal and long-range cruise speed of 447 and 425 knots, respectively.



What are the key technological features of the Legacy 650?

The Legacy 650 has advanced technology. It uses the Honeywell Primus Elite avionics system. This includes Synthetic Vision System (SVS) and XM weather integration.

It also has detailed information on airports, Navaids, and geopolitical boundaries. This helps pilots navigate safely.



What are the safety features of the Legacy 650?

The Legacy 650 meets all safety standards. Its advanced avionics and design make it safe. It can operate from various runway lengths.



What are the estimated annual operating costs for the Legacy 650?

The Legacy 650’s annual costs are estimated. Fixed costs are $867,638. Variable costs are $5,793.68 per hour.

This results in a total annual cost of about $4,705,742. This is based on 300 flight hours per year.



What is the typical purchase price for a Legacy 650?

The Legacy 650’s price varies. It ranges from $14,500,000 to $20,500,000. The price depends on the model year and condition.

The market value decreases by 12% annually.



How does the Legacy 650 compare to its competitors?

The Legacy 650 competes in the large business jet market. It has similar range and passenger capacity to the Bombardier Challenger 850. Its performance and comfort make it a strong competitor.



What do customers say about the Legacy 650?

Customers praise the Legacy 650. They like its spacious cabin and long-range capabilities. Its reliable performance is also appreciated.

Operators value its ability to fly long distances. They also like its advanced avionics for safety and efficiency.



What are the typical usage scenarios for the Legacy 650?

The Legacy 650 is used for various purposes. It’s great for corporate travel, private ownership, and charter operations. Its range and capacity are ideal for long trips.



What is the current market demand for the Legacy 650?

The Legacy 650 has a stable demand. About 9% of the fleet is for sale. There are 10 aircraft available, showing steady interest.



What is the environmental impact of the Legacy 650?

The Legacy 650’s environmental impact is not detailed. Its fuel consumption is 381 gallons per hour. Manufacturers like Embraer are working to improve fuel efficiency and reduce emissions.



What are the maintenance requirements for the Legacy 650?

The Legacy 650’s engines need an overhaul every 6,500 hours. This costs about $1,650,000. Mid-life maintenance is at 3,250 hours, costing $825,000.

Embraer offers support services to ensure the aircraft’s reliability and longevity.



What is the availability of pre-owned Legacy 650 aircraft?

Pre-owned Legacy 650s are available. New production stopped in 2020. Listings show models from 2011 to 2014 with flight times from 1,819 to 6,138 hours.
